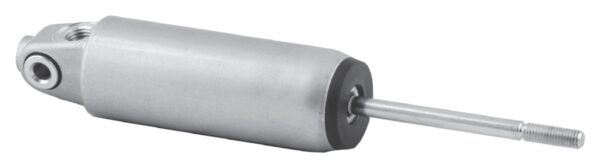

Working Cylinder / Arbeitszylinder 1-1570

Description

Working cylinders convert compressed air into a straight push or pull. They are used on gearbox shift mechanisms, exhaust brakes, door gear and any auxiliary function that is operated from the vehicle’s air system rather than by hand.

Key data for this version: technical data Piston Ø40 mm · stroke 40 mm. The Buyukdemir reference is 1-1570.

It cross-refers to the original equipment numbers 81 15701 6080.

This is the Piston Ø40 mm · stroke 40 mm version; the nearest sizes in the same range are Piston Ø35 mm · stroke 85 mm (1-1505), Piston Ø35 mm · stroke 50 mm (1-1516), Piston Ø35 mm · stroke 85 mm (1-1515), Piston Ø35 mm · stroke 73 mm (1-1521), Connection M12 X 1,5 · Piston Ø35 mm · stroke 60 mm (1-1522).

Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
