Description
Working cylinders convert compressed air into a straight push or pull. They are used on gearbox shift mechanisms, exhaust brakes, door gear and any auxiliary function that is operated from the vehicle’s air system rather than by hand.

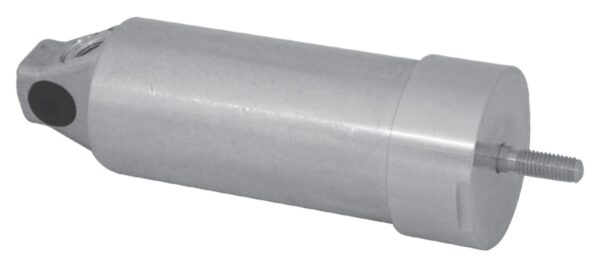

Key data for this version: technical data Piston Ø45 mm · stroke 45 mm. The Buyukdemir reference is 1-1569.
It cross-refers to the original equipment numbers 81 37615 6004, 81 15700 6012.

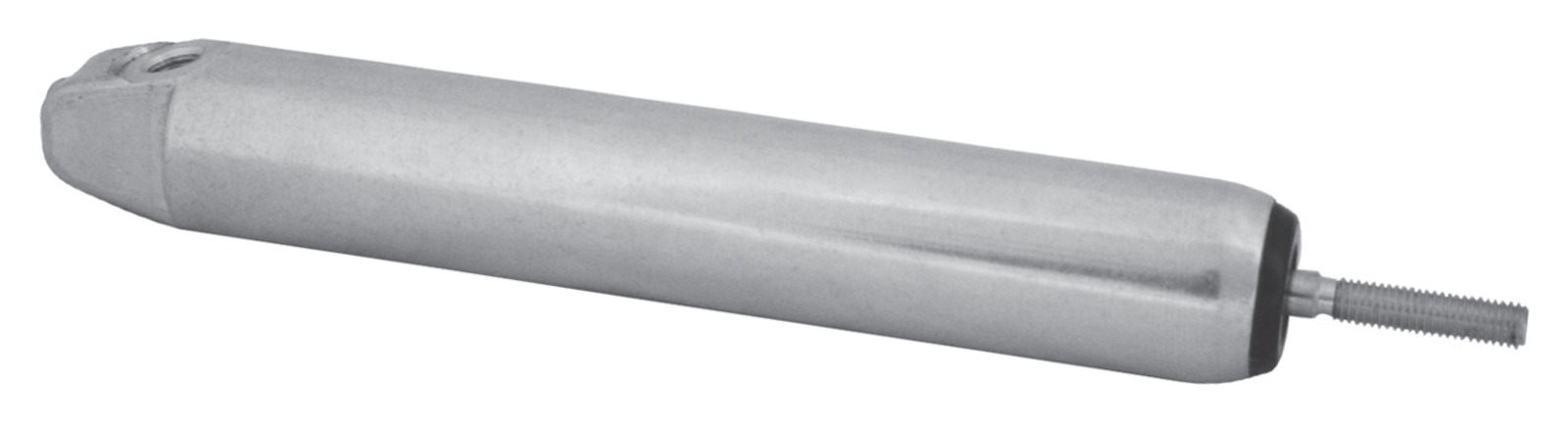

This is the Piston Ø45 mm · stroke 45 mm version; the nearest sizes in the same range are Piston Ø40 mm · stroke 48 mm (1-1563), Piston Ø40 mm · stroke 48 mm (1-1564), Piston Ø40 mm · stroke 48 mm (1-1567), Piston Ø30 mm · stroke 95 mm (1-1568), Connection M12 X 1,5 · Piston Ø40 mm · stroke 48 mm (1-1562).
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
