Description
Working cylinders convert compressed air into a straight push or pull. They are used on gearbox shift mechanisms, exhaust brakes, door gear and any auxiliary function that is operated from the vehicle’s air system rather than by hand.

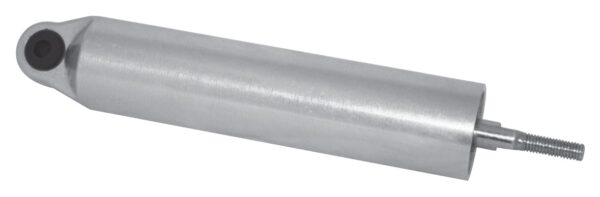

Key data for this version: version Working Cylinder (M8), technical data Piston Ø35 mm · stroke 50 mm. The Buyukdemir reference is 1-1516.
It cross-refers to the original equipment numbers 421 411 035 0, 000 430 03 26, 0482 006 008.
This is the Piston Ø35 mm · stroke 50 mm version; the nearest sizes in the same range are Piston Ø35 mm · stroke 85 mm, Working Cylinder (M12) (1-1505), Piston Ø35 mm · stroke 85 mm, Working Cylinder (M8) (1-1515), Piston Ø35 mm · stroke 73 mm, Working Cylinder (M8) (1-1521), Piston Ø40 mm · stroke 40 mm, Working Cylinder (1-1570), Connection M12 X 1,5 · Piston Ø35 mm · stroke 60 mm, Working Cylinder (M8) — rubber with bush (1-1522).
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
