Description
Working cylinders convert compressed air into a straight push or pull. They are used on gearbox shift mechanisms, exhaust brakes, door gear and any auxiliary function that is operated from the vehicle’s air system rather than by hand.

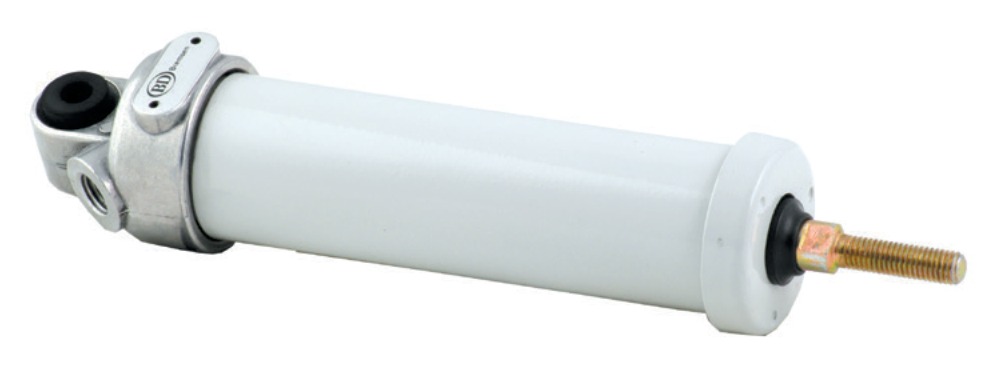

Key data for this version: version Working Cylinder (M8) — steel wound tube, technical data Piston Ø35 mm · stroke 85 mm. The Buyukdemir reference is 1-1510.
It cross-refers to the original equipment numbers SZ1200, SZ1208, 03420340, 311839, 1112542, 000 430 10 26, 000 430 06 26, 000 430 02 26, 0 482 006 006, 0 482 006 010, 0 482 006 013, 421 411 023 0, 421 411 025 0, 421 411 306 0, 1505926, 6770733.
This is the Piston Ø35 mm · stroke 85 mm version; the nearest sizes in the same range are Piston Ø35 mm · stroke 78 mm, Working Cylinder (M8) — steel wound tube (1-1520), Piston Ø35 mm · stroke 85 mm, Working Cylinder (M12) — steel wound tube (1-1500), Piston Ø30 mm · stroke 48 mm, Working Cylinder (1-1450), Piston Ø30 mm · stroke 52 mm · Connection M10 X 1 · Rod thread M8, Working Cylinder (1-1451), Piston Ø28 mm · stroke 48 mm, Working Cylinder (1-1420).
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
