Description
Working cylinders convert compressed air into a straight push or pull. They are used on gearbox shift mechanisms, exhaust brakes, door gear and any auxiliary function that is operated from the vehicle’s air system rather than by hand.

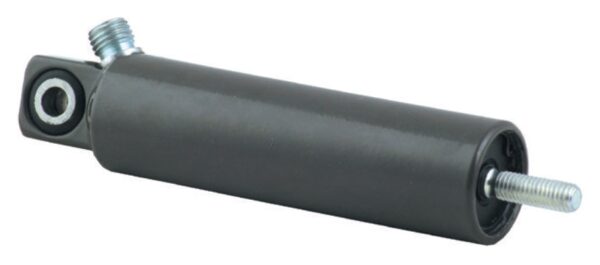

Piston ⌀ 28mm Stroke: 48mm.
Key data for this version: technical data Piston Ø28 mm · stroke 48 mm. The Buyukdemir reference is 1-1420.
It belongs to the Working Cylinder / Arbeitszylinder range in the Buyukdemir catalogue.
It cross-refers to the original equipment numbers SZ 1114, SZ 1124, SZ 1130, SZ 1161, 0 482 024 001, 81 15701 6003, 421 425 010 0, 421 429 000 0, 421 429 003 0, 000 430 30 26, 000 430 32 26, 000 430 48 26, 000 430 49 26, 000 430 19 26, 1505023.
This is the Piston Ø28 mm · stroke 48 mm version; the nearest sizes in the same range are Piston Ø30 mm · stroke 48 mm, Working Cylinder (1-1450), Piston Ø30 mm · stroke 52 mm · Connection M10 X 1 · Rod thread M8, Working Cylinder (1-1451), Piston Ø35 mm · stroke 78 mm, Working Cylinder (M8) — steel wound tube (1-1520), Piston Ø35 mm · stroke 85 mm, Working Cylinder (M8) — steel wound tube (1-1510), Piston Ø35 mm · stroke 85 mm, Working Cylinder (M12) — steel wound tube (1-1500).
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
