Description

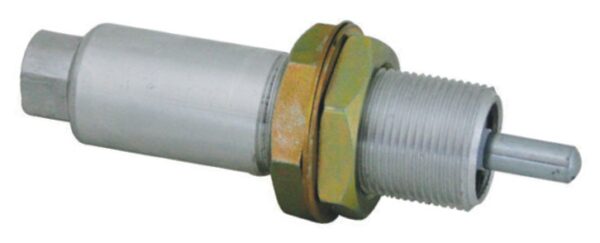

Working cylinders convert compressed air into a straight push or pull. They are used on gearbox shift mechanisms, exhaust brakes, door gear and any auxiliary function that is operated from the vehicle’s air system rather than by hand.
The Buyukdemir reference for this item is 1-1410.
It cross-refers to the original equipment numbers 0 482 020 002, 51 11160 6009, 4811853.
The same part is made in other technical data options: Piston Ø18 mm · stroke 45 mm, Working Cylinder (1-1411), Piston Ø28 mm · stroke 48 mm, Working Cylinder (1-1420), Piston Ø30 mm · stroke 48 mm, Working Cylinder (1-1450), Piston Ø30 mm · stroke 52 mm · Connection M10 X 1 · Rod thread M8, Working Cylinder (1-1451), Piston Ø35 mm · stroke 78 mm, Working Cylinder (M8) — steel wound tube (1-1520).
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
