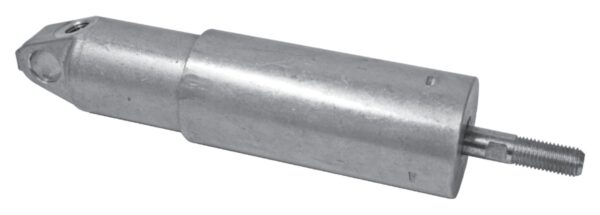

Working Cylinder / Arbeitszylinder 1-1523
Connection: (M12 x 1,5)
Piston: 35mm
Stroke: 70mm
Iveco 190
| Original Ref. | BD Ref. |
|---|---|
| (M12) 4700966 (Iveco) | 1-1523 |
| 4759252 (Iveco) |
- Description
Description
Working cylinders convert compressed air into a straight push or pull. They are used on gearbox shift mechanisms, exhaust brakes, door gear and any auxiliary function that is operated from the vehicle’s air system rather than by hand.
Key data for this version: version Working Cylinder — Iveco 190, technical data Connection M12 X 1,5 · Piston Ø35 mm · stroke 70 mm. The Buyukdemir reference is 1-1523.
It cross-refers to the original equipment numbers 4700966, 4759252.

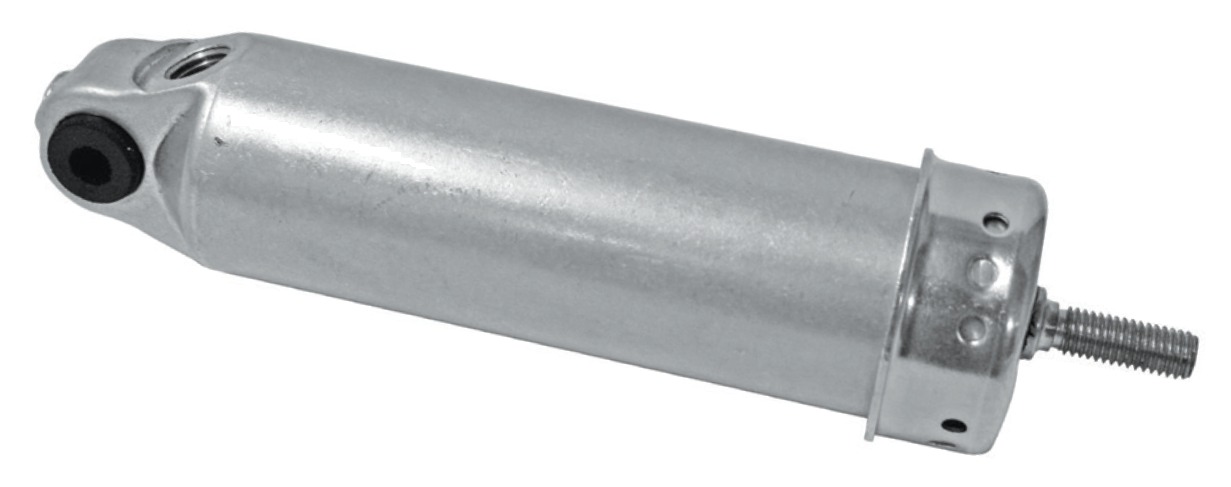

This is the Connection M12 X 1,5 · Piston Ø35 mm · stroke 70 mm version; the nearest sizes in the same range are Connection M12 X 1,5 · Piston Ø35 mm · stroke 60 mm, Working Cylinder (M8) — rubber with bush (1-1522), Piston Ø35 mm · stroke 85 mm, Working Cylinder (M12) (1-1505), Piston Ø35 mm · stroke 50 mm, Working Cylinder (M8) (1-1516), Piston Ø35 mm · stroke 85 mm, Working Cylinder (M8) (1-1515), Piston Ø35 mm · stroke 73 mm, Working Cylinder (M8) (1-1521).
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
