Description

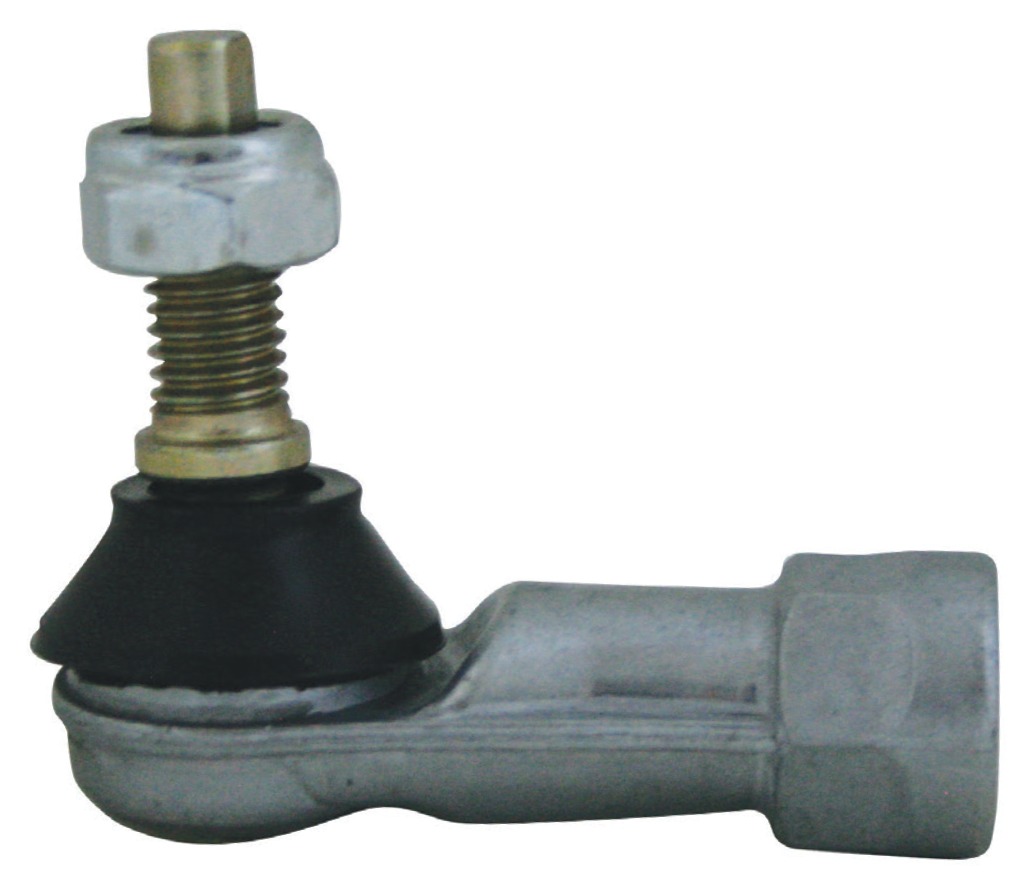

Shift rod connectors join the sections of a gear linkage and set its length. The joint allows the small angular movement the linkage makes as the engine moves on its mountings.
Key data for this version: thread size A) M10 X 1.5 · B) M12 X 1.75 · Length (L) 54,5 mm, orientation Left. The Buyukdemir reference is 1-1155.
It belongs to the Shift Rod Connector range in the Buyukdemir catalogue.
It cross-refers to the original equipment numbers 000 268 61 89, 000 268 47 89, 81 95301 6063, 81 95301 6131, 81 95301 6171, 81 95301 6174, 8198187.
The same part is made in other orientation options: Right, A) M10 X 1.5 · B) M12 X 1.75 · Length (L) 54,5 mm (1-1156), Left, A) M10 X 1.5 · B) M10 X 1.5 (1-1158), Right, A) M10 X 1.5 · B) M10 X 1.5 (1-1159), 1-1157, 1-1160.
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
