Description

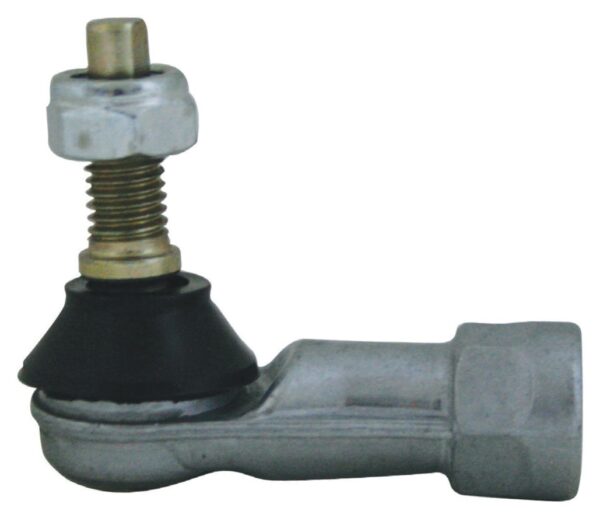

Shift rod connectors join the sections of a gear linkage and set its length. The joint allows the small angular movement the linkage makes as the engine moves on its mountings.
Key data for this version: thread size A) M10 X 1.5 · B) M12 X 1.75 · Length (L) 54,5 mm, orientation Right. The Buyukdemir reference is 1-1156.
It cross-refers to the original equipment numbers 000 268 62 89, 000 268 46 89, 81 95301 6064, 81 95301 6130, 81 95301 6170, 81 95301 6173, 8198188, 503136169.
The same part is made in other orientation options: Left, A) M10 X 1.5 · B) M12 X 1.75 · Length (L) 54,5 mm (1-1155), Right, A) M10 X 1.5 · B) M10 X 1.5 (1-1159), Left, A) M10 X 1.5 · B) M10 X 1.5 (1-1158), 1-1157, 1-1160.
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
