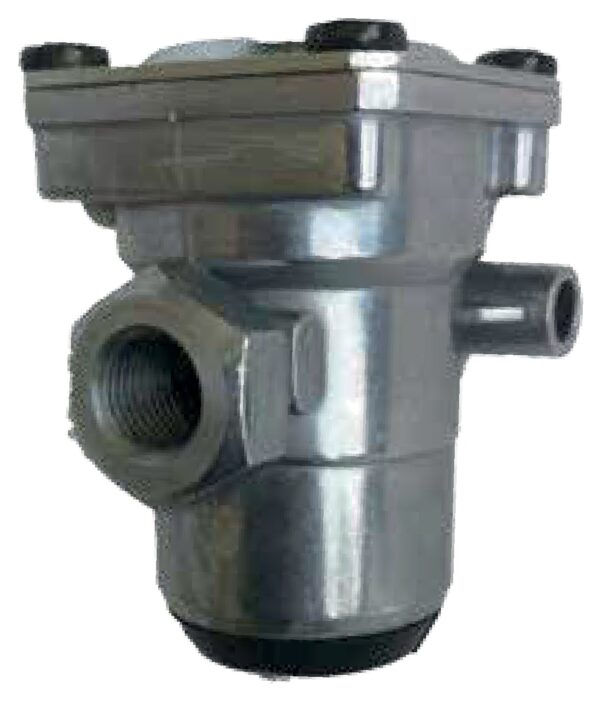

Pressure Limiting Valve 4-4502

Description

Pressure limiting valves cap the pressure delivered to a circuit and vent anything above the set point. They protect components that are rated below the system’s working pressure.

Key data for this version: delivered / opening pressure 7 / 9,5 bar. The Buyukdemir reference is 4-4502.

It cross-refers to the original equipment numbers 475 015 045 0.

This is the 7 / 9,5 bar version; the nearest sizes in the same range are 7,2 bar (4-4507), 6,7 / 9,2 bar (4-4504), 7,5 / 10 bar (4-4503), 8 / 10,5 bar (4-4508), 8 / 1,95 bar (4-4509).

Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
