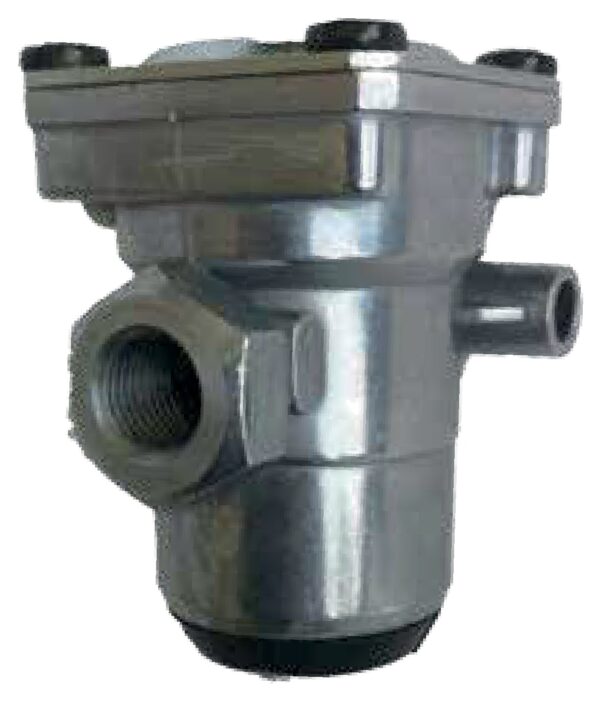

Pressure Limiting Valve 4-4508

Pressure Limiting Valve 4-4036
Pressure Limiting Valve 4-4509

Pressure — Delivered: 8 Bar · Opening: 10.5 Bar

Original Ref. BD Ref.
002 431 2406 4-4508
1505095 (Daf)
1935024 (Scania)
475 015 005 0
82 52101 6036

Also written as: 0024312406 · 4750150050 · 82521016036

SKU: 4-4508 Categories: , ,
Add to quote

Description

Pressure limiting valves cap the pressure delivered to a circuit and vent anything above the set point. They protect components that are rated below the system’s working pressure.

Key data for this version: delivered / opening pressure 8 / 10,5 bar. The Buyukdemir reference is 4-4508.

It cross-refers to the original equipment numbers 82 52101 6036, 475 015 005 0, 002 431 2406, 1505095, 1935024.

This is the 8 / 10,5 bar version; the nearest sizes in the same range are 8 / 1,95 bar (4-4509), 8 / 10,5 bar (4-4510), 7,5 / 10 bar (4-4503), 8,5 / 11 bar (4-4505), 8,5 / 11 bar (4-4506).

Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
