5-2712-1

Duomatic Coupling 5-2712

Valve, retarder 7-1221
Pressure Limiting Valve 4-4508
Original Ref. BD Ref.
452 802 0070 5-2712
373397 (Scania)
6213539 (Volvo)

Also written as: 4528020070

SKU: 5-2712 Categories: , Tags: ,
Add to quote

Description

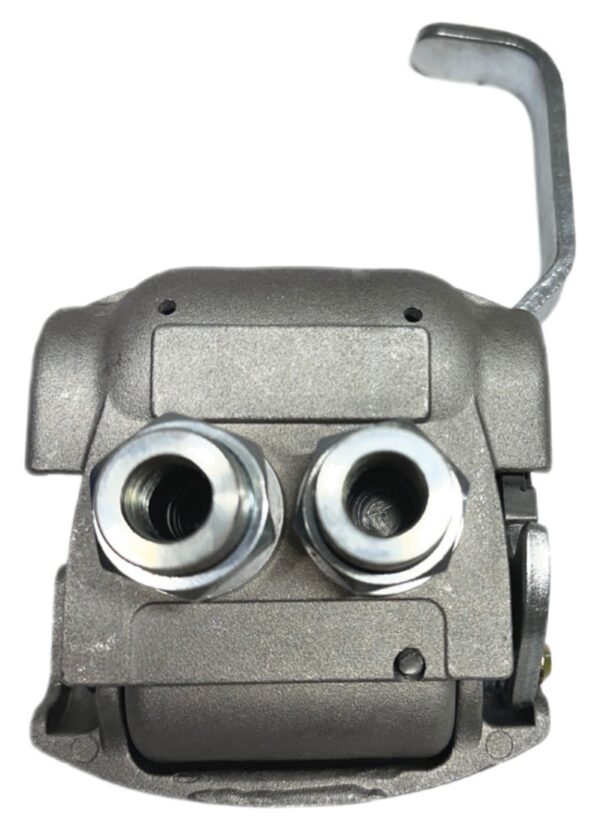

Duomatic couplings join both brake lines, supply and control, in a single connector. One movement couples the trailer, which removes the risk of crossing the two lines that separate palm couplings allow.

Thread M22x1.5 / M16x1.5.

Key data for this version: feature / thread M22 X 1.5 / M16 X 1.5. The Buyukdemir reference is 5-2712.

It cross-refers to the original equipment numbers 452 802 007 0, 373397, 6213539.

This is the M22 X 1.5 / M16 X 1.5 version; the nearest sizes in the same range are Quick Adapter · M22 X 1.5 / M16 X 1.5 (5-2711), M22 X 1.5 / 1/4"-18NPSF (5-2710).

Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
