Description

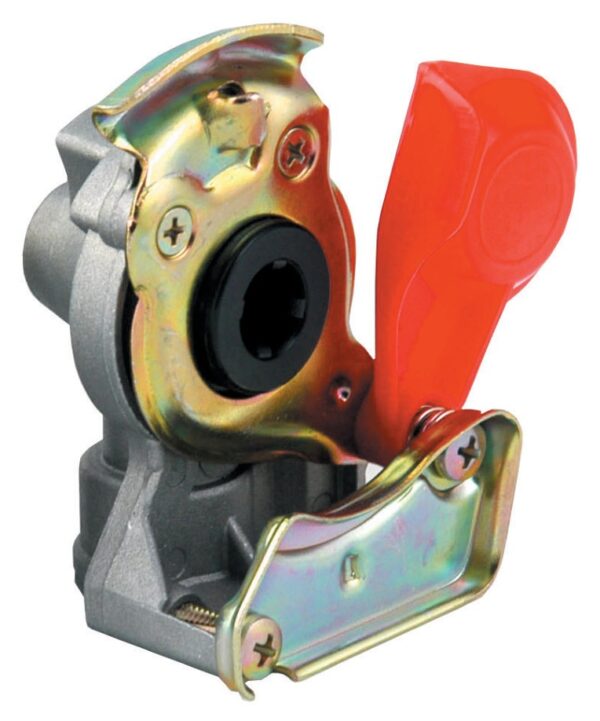

Coupling heads with an automatic shutter close the air line the moment the trailer is uncoupled. The shutter prevents pressure loss and keeps road dirt and moisture out of the brake circuit, which makes this type the safer choice on vehicles that are coupled and uncoupled several times a day.
Key data for this version: thread M22 X 1.5. The Buyukdemir reference is 5-2200.
It belongs to the Red Cap Supply Line / Roter Deckel Vorratsleitung range in the Buyukdemir catalogue.
It cross-refers to the original equipment numbers 452 200 211 0, 0 484 102 008, 000 429 35 30, 0 484 102 028, 1504064, KU 2110, 81 51220 6024, KU 4121.
This is the M22 X 1.5 version; the nearest sizes in the same range are M18 X 1.5 (5-2320), M16 X 1.5 (5-2300), R1/2 BSP (5-2310).
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
