Description

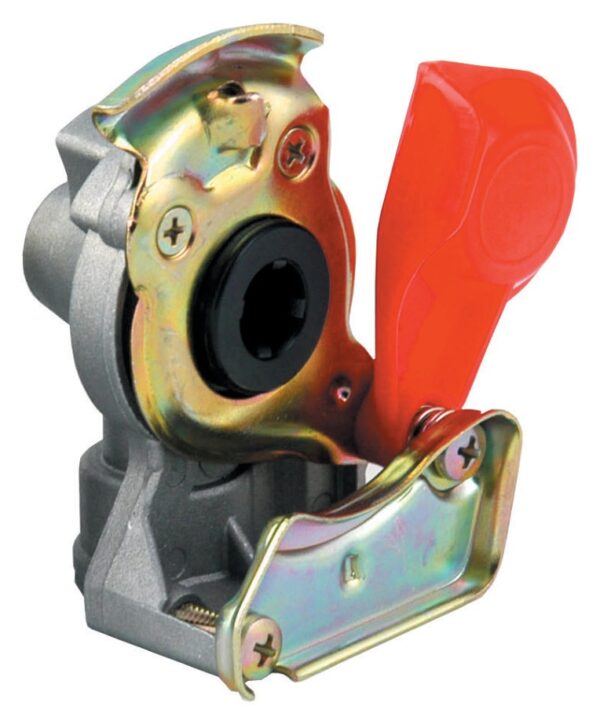

Coupling heads with an automatic shutter close the air line the moment the trailer is uncoupled. The shutter prevents pressure loss and keeps road dirt and moisture out of the brake circuit, which makes this type the safer choice on vehicles that are coupled and uncoupled several times a day.
Key data for this version: thread M16 X 1.5. The Buyukdemir reference is 5-2300.
It belongs to the Red Cap Supply Line / Roter Deckel Vorratsleitung range in the Buyukdemir catalogue.
It cross-refers to the original equipment numbers 452 200 221 0, 0 484 102 002, 952 200 221 0, 0 484 102 006, 000 429 39 30, 0 484 102 016, 000 429 55 30, 0 484 102 026, 000 429 61 30, 1584598, 000 429 80 30, 81 51220 6010, 000 429 96 30, 81 51220 6026, KU 4125, 81 51220 6068, KU 4124, 81 51220 6094, 42070652.
This is the M16 X 1.5 version; the nearest sizes in the same range are M18 X 1.5 (5-2320), M22 X 1.5 (5-2200), R1/2 BSP (5-2310).
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
