Description
Working cylinders convert compressed air into a straight push or pull. They are used on gearbox shift mechanisms, exhaust brakes, door gear and any auxiliary function that is operated from the vehicle’s air system rather than by hand.

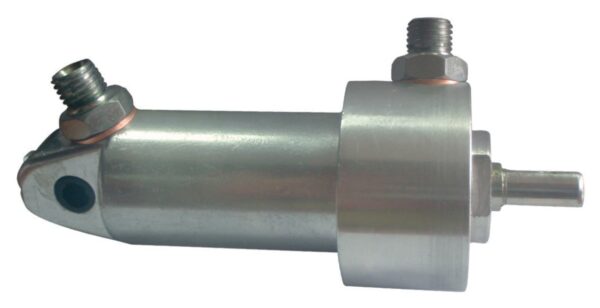

Key data for this version: version Working Cylinder (Magirus). The Buyukdemir reference is 1-1588.
It cross-refers to the original equipment numbers 02442616.

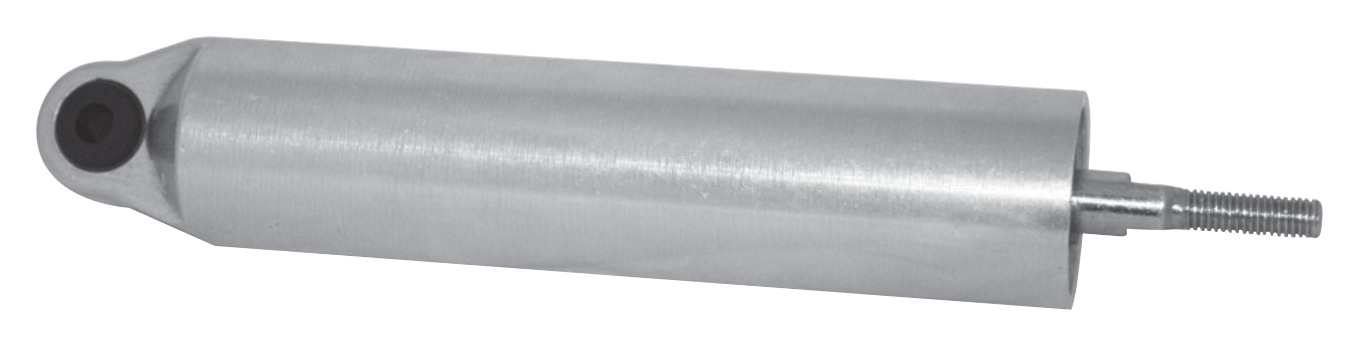

The same part is made in other technical data options: Connection M12 x 1,5 · Piston Ø50 mm · stroke 53 mm · Shaft M10, Working Cylinder (1-1587), Connection M12 x 1,5 · Piston Ø50 mm · stroke 28 mm, Working Cylinder (1-1529), Connection M12 x 1,5 · Piston Ø50 mm · stroke 26 mm, Working Cylinder (1-1530), Piston Ø35 mm · stroke 85 mm · Shaft M8, Working Cylinder (1-1511).
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
