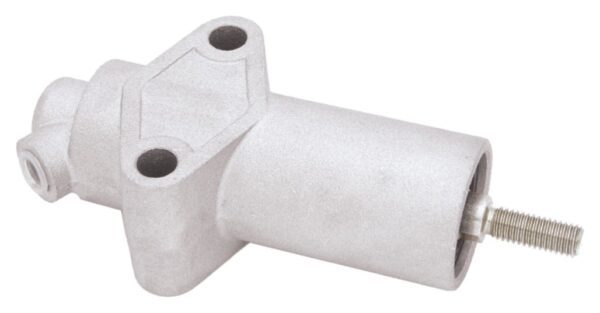

Working Cylinder / Arbeitszylinder 1-1565
Injection Pump Lock Cylinder Connection: M10 x 1 Piston: 36mm Stroke: 40mm
| Original Ref. | BD Ref. |
|---|---|
| 4717165 (Iveco) | 1-1565 |
| AC 399 A (Iveco) | |
| 500339316 (Iveco) |
- Description
Description
Working cylinders convert compressed air into a straight push or pull. They are used on gearbox shift mechanisms, exhaust brakes, door gear and any auxiliary function that is operated from the vehicle’s air system rather than by hand.
Key data for this version: version Injection Pump Lock Cylinder, technical data Connection M10x1 · Piston Ø36 mm · stroke 40 mm. The Buyukdemir reference is 1-1565.
It belongs to the Working Cylinder · Injection Pump Lock Cylinder range in the Buyukdemir catalogue.
It cross-refers to the original equipment numbers 4717165, 500339316.
This is the Connection M10x1 · Piston Ø36 mm · stroke 40 mm version; the nearest sizes in the same range are Connection M10x1 · Piston Ø30 mm · stroke 26 mm, Working Cylinder (1-1527), Connection M12x1,5 · Piston Ø30 mm · stroke 93 mm, Working Cylinder (1-1524), Connection M12x1,5 · Piston Ø35 mm · stroke 85 mm, Working Cylinder (1-1525), Connection M12x1,5 · Piston Ø43 mm · stroke 60 mm, Working Cylinder (galvanizli) (1-1526), Connection M12x1,5 · Piston Ø50 mm · stroke 26 mm, Working Cylinder (1-1528).
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
