Description
Working cylinders convert compressed air into a straight push or pull. They are used on gearbox shift mechanisms, exhaust brakes, door gear and any auxiliary function that is operated from the vehicle’s air system rather than by hand.

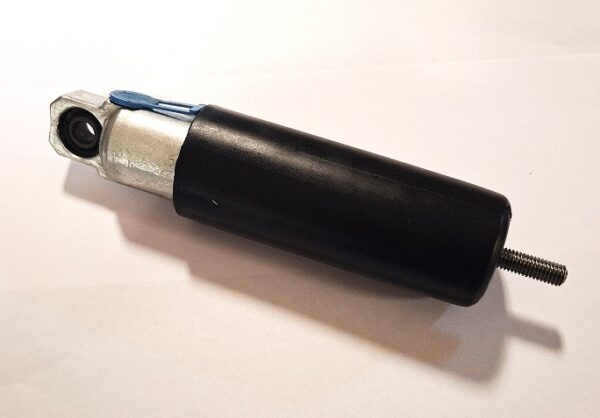

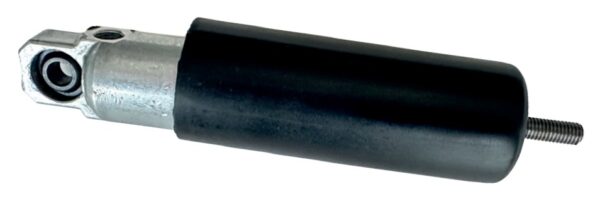

Key data for this version: connection M10 X 1.5, piston / stroke Ø28 / 70 mm, Rod M8. The Buyukdemir reference is 1-1421.
It belongs to the Working Cylinder / Arbeitszylinder range in the Buyukdemir catalogue.
It cross-refers to the original equipment numbers 000 430 25 26, 421 429 002 0, 1932609, 1505022.
This is the Ø28 / 70 mm, Rod M8 version; the nearest sizes in the same range are Ø30 / 46 mm, Rod M8, M12 X 1.5 (1-1595), Ø40 / 48 mm, Rod M8, M12 X 1.5 (1-1597), Ø43 / 54 mm, M12 X 1.5 (1-1531), 1-1596.
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
