Description

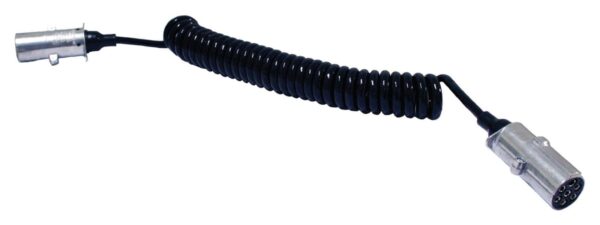

Trailer electrical cables carry lighting and signal current between the towing vehicle and the trailer. The coiled cable extends and retracts with the movement of the combination instead of hanging loose.
Key data for this version: material PUR, dimensions inner Ø30 / outer Ø45 mm · 3,5 m · 35 turns, voltage 24 V, plug type "N" aluminium. The Buyukdemir reference is 6-0110.
It belongs to the Trailer Electrical Cable / Steckverbindungs Kabel range in the Buyukdemir catalogue.
It cross-refers to the original equipment numbers 8KA 004 797 071, 441 300 003 0.
The same part is made in other plug type options: "S" aluminium, inner Ø30 / outer Ø45 mm · 3,5 m · 35 turns, 24 V (6-0111), "N" aluminium, inner Ø70 / outer Ø90 mm · 19 turns, 24 V (6-0001), "N" aluminium, inner Ø45 / outer Ø65 mm · 3,5 m · 25 turns, 24 V (6-0100), "S" aluminium, inner Ø70 / outer Ø90 mm · 19 turns, 24 V (6-0002), "N" aluminium, inner Ø70 / outer Ø90 mm · 19 turns, 12 V (6-0004).
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
