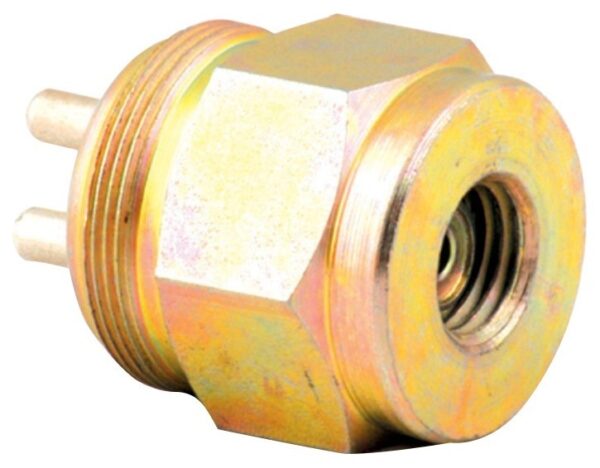

Stop Lamp Switch AirActuated / Bremslichtschalter Pneumatisch Betätigt 9-9300

Stop Lamp Switch Hydraulically Actuated / Bremslichtschalter Hydraulisch Betätigt 9-9211
Pressure Switch / Druckschalter 9-9434

Mounting with male thread M 12X1.5

Original Ref. BD Ref.
0344400010 9-9300
0005459214
0005456009
0005454509
422208 (Scania)
Brand Cross Reference
Mercedes 003 545 92 14

Also written as: 0035459214

SKU: 9-9300 Category: Tag:
Add to quote

Description

The brake light switch closes the stop-lamp circuit when the brake is applied. The mechanical type is operated by the pedal linkage rather than by air pressure.

Key data for this version: thread M12 X 1,5 / M27 X 1 · (0,10–0,50 bar). The Buyukdemir reference is 9-9300.

It belongs to the Air Actuated — two with stem range in the Buyukdemir catalogue.

It cross-refers to the original equipment numbers 0 344 400 010, 000 545 92 14, 000 545 60 09, 000 545 45 09, 003 545 92 14, 422208.

This is the M12 X 1,5 / M27 X 1 · (0,10–0,50 bar) version; the nearest sizes in the same range are M12 X 1,5 / M24 X 1 · (5,5 bar) (9-9301).

Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
