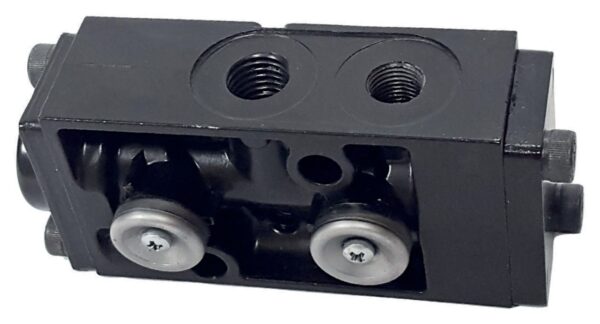

Shifting Valve 5/2 (5/2 Wegeventil) 1-1101

Shifting Valve 5/2 (5/2 Wegeventil) 1-1100
Shifting Valve 5/2 (5/2 Wegeventil) 1-1102

ZF0501215358

ZF0501208629

Original Ref. BD Ref.
1374723 (Daf) 93192627 (Iveco) 1-1101
1297004 (Daf) 7421318366 (Renault)
1787556 (Daf) 21318366 (Volvo)
81 32734 6044 21884344 (Volvo)
85 30001 9636 3121607 (Volvo)
Brand Cross Reference
Man 85 32734 6001
Volvo 3126232
— ZF0501208629
— ZF0501215358

Also written as: 81327346044 · 85300019636 · 85327346001

SKU: 1-1101 Categories: , Tags: , , ,
Add to quote

Description

The 5/2 shifting valve has five ports and two positions: it feeds one side of a double-acting cylinder while venting the other, then reverses both when it is switched. This is what drives a cylinder out and back from a single control.

The Buyukdemir reference for this item is 1-1101.

It cross-refers to the original equipment numbers ZF0501215358, ZF0501208629, 1374723, 1297004, 1787556, 81 32734 6044, 85 30001 9636, 85 32734 6001, 93192627, 7421318366, 21318366, 21884344, 3121607, 3126232.

The same part is made in other version options: Shifting Valve 5/2 (1-1100), Shifting Valve 5/2 (1-1102), Shifting Valve 5/2 (1-1103).

Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
