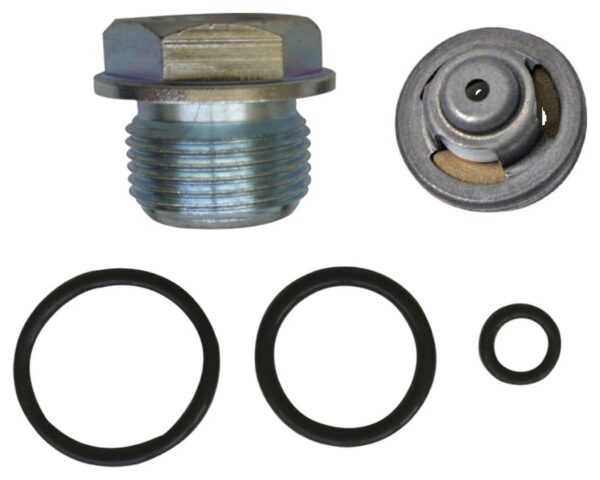

Set (5 pcs) 0-2508
Adapter (M22X1,5) with AC Valve 18mm (1 pc)
AC Valve 18mm (1pc) O ring (22×2,5)(1pc) O ring (17,5×2,5)(1pc) O ring (7×1,5)(1pc)
| Original Ref. | BD Ref. |
|---|---|
| 2447010024 | 0-2508 |
| 2447010043 | |
| 0000900810 |
- Description
Description
The set brings together the parts needed for one job, so the seals, washers and small components are to hand instead of being ordered separately.
Key data for this version: contents Adapter M22X1,5 + AC Valve 18 mm (1) · AC Valve 18 mm (1) · O ring 22×2,5 (1) · O ring 17,5×2,5 (1) · O ring 7×1,5 (1). The Buyukdemir reference is 0-2508.
It cross-refers to the original equipment numbers 2 447 010 024, 2 447 010 043, 000 090 0810.
This is the Adapter M22X1,5 + AC Valve 18 mm (1) · AC Valve 18 mm (1) · O ring 22×2,5 (1) · O ring 17,5×2,5 (1) · O ring 7×1,5 (1) version; the nearest sizes in the same range are O ring 20×2,5 (1) · O ring 22×2,5 (1) · O ring 7×1,5 (1) · A.C. Valve 18 mm (2) (0-2506), O ring 17,5×2,5 (1) · O ring 22×2,5 (1) · O ring 7×1,5 (1) · A.C. Valve 18 mm (2) (0-2505), O ring 16,60×2,40 (2) · A.C. Valve 18 mm (2) (0-2507).
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
