Relay valve / Relaisventil

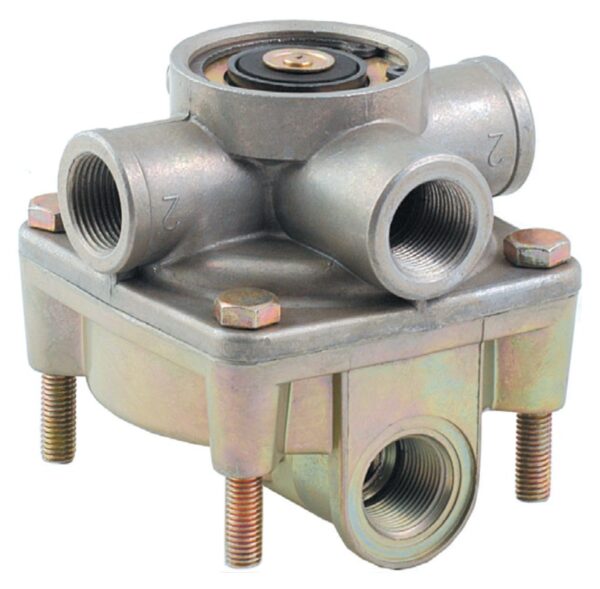

A relay valve is used in a compressed air system, where it supplies the air to operate an item of equipment when signalled by a control valve, to which it reacts precisely and immediately. One of its uses is to speed the application and release of the brakes a long wheelbase vehicle.
| Thread & Gewinde | Original Ref. | BD Ref. | |||
|---|---|---|---|---|---|
| 1. Supply | 2. Cylinder | 4. Control | |||
| 22 X 1,5 | 22 X 1,5 | 22 X 1,5 | 9730010100 | RE1105 | 4-6010 |
| 0004296544 | RE1108 | ||||
| 010 | 0014293044 | RE1110 | |||
| 0014295544 | |||||
| 04810260 | |||||
| 22 X 1,5 | 16 X 1,5 | 16 X 1,5 | 9730010200 | RE1115 | 4-6020 |
| 0004296844 | |||||
| 0004299544 | |||||
| 0481026005 | |||||
| 0481026002 | |||||
| 22 X 1,5 | 22 X 1,5 | 16 X 1,5 | 9730012100 | 4-6030 | |
| 0481026010 | |||||
| 0481026021 | |||||
| 22 X 1,5 | 22 X 1,5 | 16 X 1,5 | 9730012200 | RE1121 | 4-6040 |
| 0481026006 |
