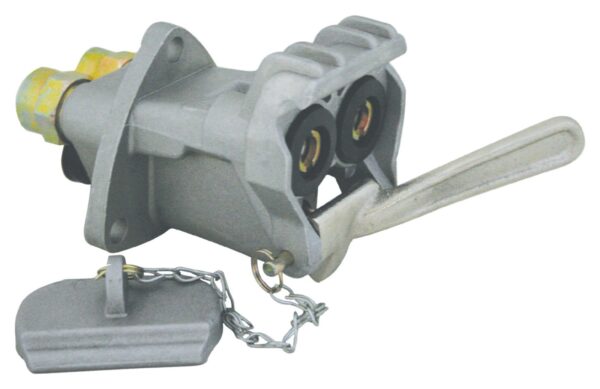

Palm Coupling (Cuna Type) with Sphere Connection 5-3101

Coupling Head Automatic 5-2611
Test Connection 5-5307

Connection: M22 X 1.5 – M22 X 1.5

Original Ref. BD Ref.
452 811 008 0 5-3101
4523129
4608167
4608168
4608187
4666986
4666987
4685474
4689604
Add to quote

Description

Palm couplings of the cuna type join the pneumatic brake lines of a semi-trailer to the tractor unit. The two halves are pressed face to face and turned; a seal in each face closes the joint, so the line can be made and broken by hand without tools.

Key data for this version: connection M22 X 1.5 – M22 X 1.5. The Buyukdemir reference is 5-3101.

It belongs to the Palm Coupling (Cuna Type) — connection types range in the Buyukdemir catalogue.

It cross-refers to the original equipment numbers 4523129, 4666986, 4608167, 4666987, 4608168, 4685474, 4608187, 4689604, 452 811 008 0.

The same part is made in other version options: with stem (5-3100).

Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
