Description
Pressure limiting valves cap the pressure delivered to a circuit and vent anything above the set point. They protect components that are rated below the system’s working pressure.

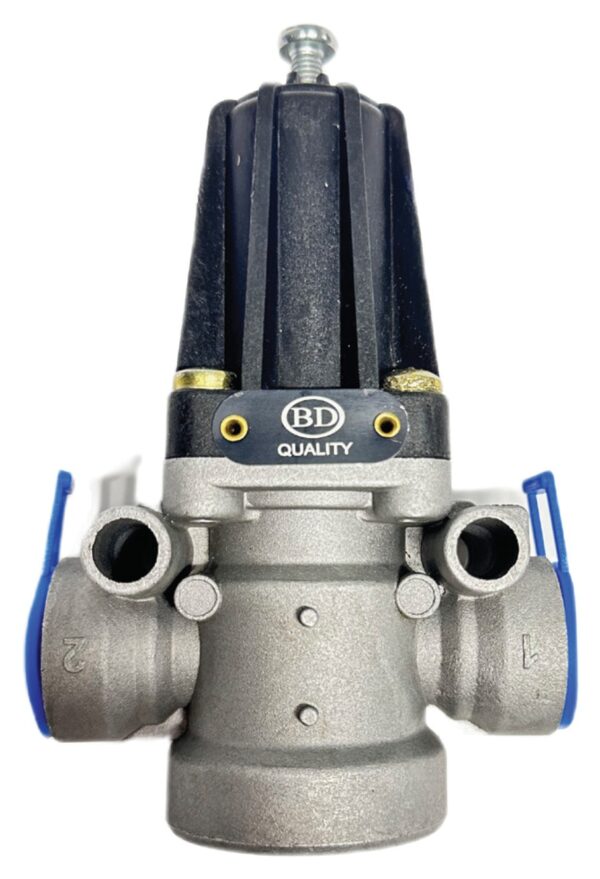

Pressure Limiting Valve Thread: M22x1,5 Operating Pressure: Max. 20bar Inlet Pressure: 10bar Outlet Pressure: 3.5 bar.
Key data for this version: inlet / outlet pressure 10 bar → 3,5 bar. The Buyukdemir reference is 4-4034.
It cross-refers to the original equipment numbers 475 010 325 0, 81 52101 6285, 1518117.
This is the 10 bar → 3,5 bar version; the nearest sizes in the same range are 10 bar → 8,5 bar (4-4031), 10 bar → 7 bar (4-4035), 12 bar → 8 bar (4-4033), 12 bar → 6,5 bar (4-4036), 13 bar → 10 bar (4-4030).
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
