Description

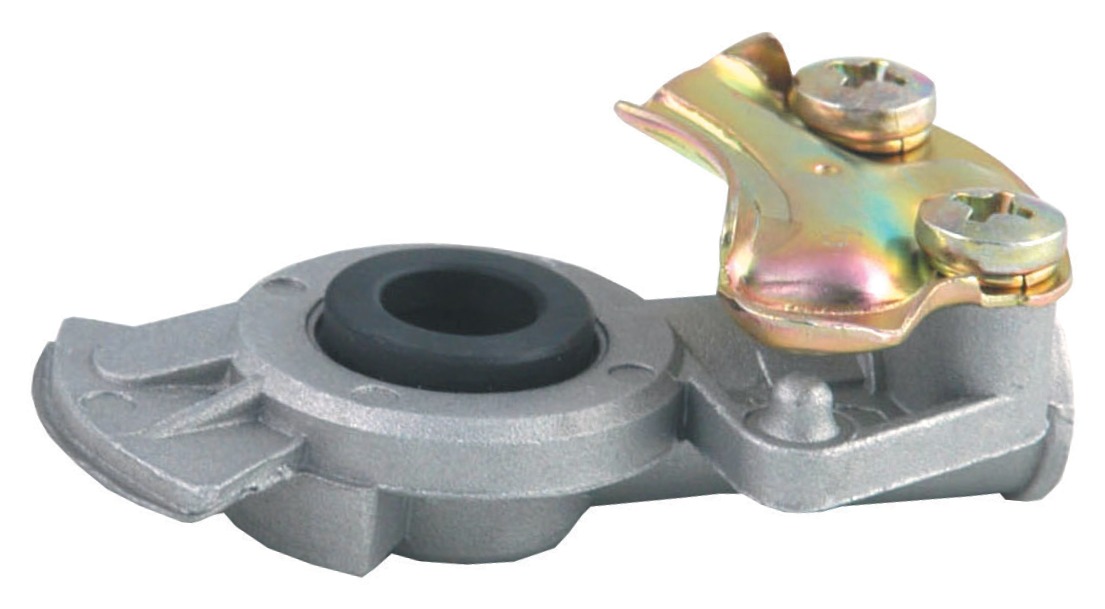

Coupling heads connect the compressed-air brake lines between a towing vehicle and its trailer. The head seals the line when the vehicles are uncoupled, so the circuit holds pressure and the service and supply lines stay separated. The colour of the cap follows the usual convention: yellow for the control (service) line, red for the supply (emergency) line.

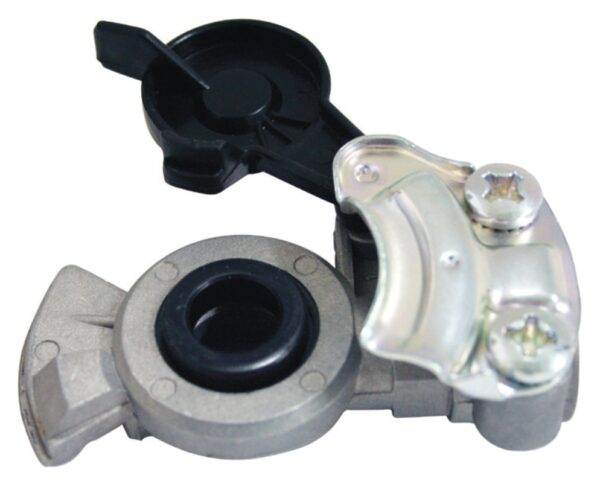

Key data for this version: type Old Type, Black Cap, thread M22 X 1.5. The Buyukdemir reference is 5-2017.
It belongs to the Coupling Heads Standard Type range in the Buyukdemir catalogue.
It cross-refers to the original equipment numbers 000 429 11 30, 81 51220 9002, 000 429 13 30, 81 51220 0002, 000 429 28 30, 81 51220 6210, 88 51220 6210, 81 51220 9210, 88 51220 9210, 452 200 004 0, 0307576, 325774.
The same part is made in other type options: Old Type, Black Cap, M16 X 1.5 (5-2018), New Type Std, Black Cap, M22 X 1.5 (5-2017.1), New Type Aut, Black Cap, M22 X 1.5 (5-2017.2), New Type Std, Black Cap, M16 X 1.5 (5-2018.1), New Type Aut, Black Cap, M16 X 1.5 (5-2018.2).
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
