Description

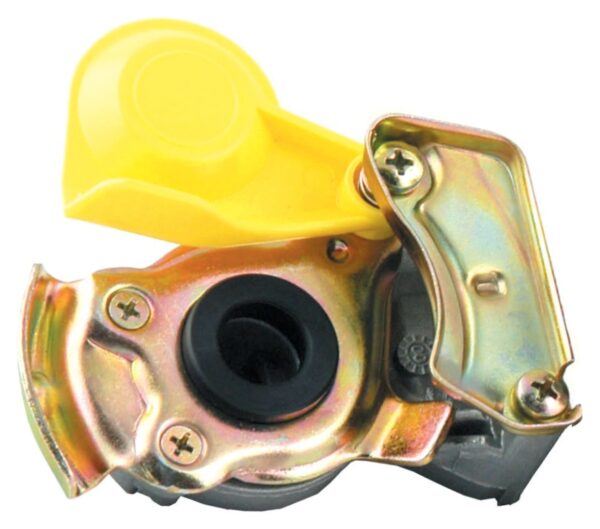

Coupling heads connect the compressed-air brake lines between a towing vehicle and its trailer. The head seals the line when the vehicles are uncoupled, so the circuit holds pressure and the service and supply lines stay separated. The colour of the cap follows the usual convention: yellow for the control (service) line, red for the supply (emergency) line.
Key data for this version: thread M16 X 1.5. The Buyukdemir reference is 5-2020.
It belongs to the Yellow Cap Control Line / Gelber Deckel Bremsleitung — Standard Type range in the Buyukdemir catalogue.
It cross-refers to the original equipment numbers 452 200 022 0, 0 484 150 112, 952 200 022 0, 0 484 150 101, 000 429 38 30, KU 1306, 000 429 51 30, KU 1311, 000 429 54 30, KU 1319, 000 429 59 30, 81 51220 6071, 000 429 79 30.
This is the M16 X 1.5 version; the nearest sizes in the same range are M18 X 1.5 (5-2051), M22 X 1.5 (5-2001), R1/2" BSP (5-2040).
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
