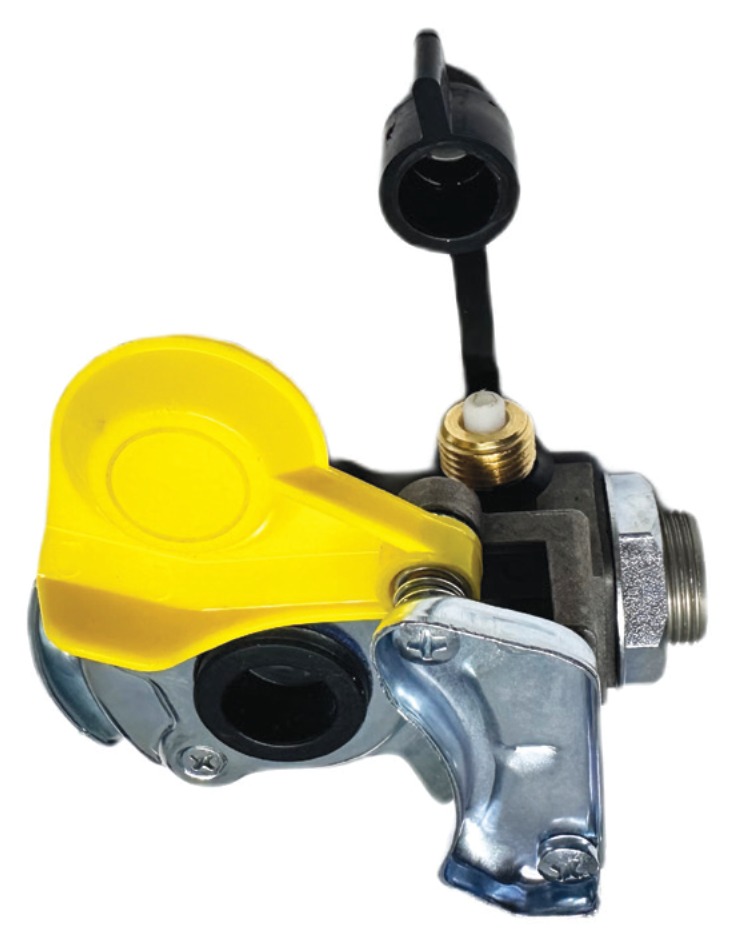

Air Coupling Std. with Line Filter 5-2515
| Original Ref. | BD Ref. |
|---|---|
| 952 201 014 0 | 5-2515 |
| 1524749 (DAF) | |
| 2090256 (Scania) |
- Description
Description
Air couplings draw compressed air off the vehicle’s own system for tyre inflation and workshop tools. The quick-coupling end lets a hose be connected and released without depressurising the line.
Key data for this version: yellow cap port thread M24x1,5 With filter With test connector, feature With Filter, With Test Connector (8×1), With Test Coupling (M16X1.5), thread M24 X 1.5. The Buyukdemir reference is 5-2515.
It belongs to the Coupling Heads Standard With Line Filter / Kupplungskopf Mit Leitungsfilter range in the Buyukdemir catalogue.
It cross-refers to the original equipment numbers 952 201 014 0, 1524749, 2090256.
This is the With Filter, With Test Connector (8×1), With Test Coupling (M16X1.5) version; the nearest sizes in the same range are With Filter, With Test Connector (8×1), M24 X 1.5 (5-2514), Red cap, M16 X 1.5 (5-2512), Yellow cap, M16 X 1.5 (5-2513), With Filter, With Test Coupling (M16X1.5), M16 X 1.5 (5-2516), With Filter, M16 X 1.5 (5-2517).
Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
