ADAPTER 24V (15-2X7 CORE) 6-0500

Trailer ABS – Adapter Cable / Adapterwendel 6-0550
ADAPTER 24V (15-2X7 CORE) 6-0510

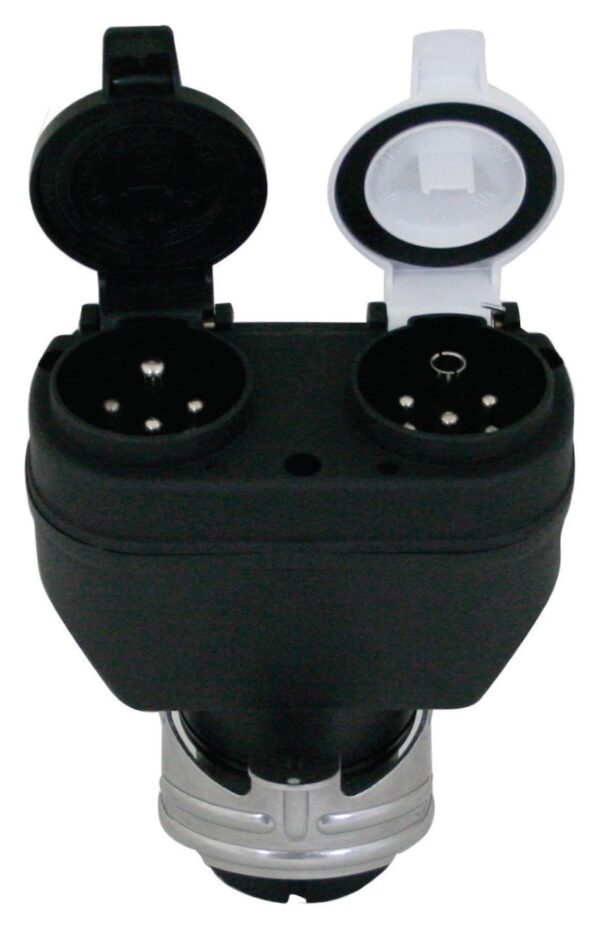

Compact Adapter from 15 pin plug to 2 socket 7 pin 24V N/S

Plug: 15 Core ISO 12098

SOCKET: 7 Core N ISO 1185, / Core S ISO 3731

Towing Vehicle
Scheme. Original Ref. BD Ref.
C 8JA005952061 6-0500
A0025401181
SKU: 6-0500 Category:
Add to quote

Description

The adapter splits a single fifteen-pole outlet into two seven-pole connections, so a trailer wired to the older standard can be run from a modern towing vehicle.

Key data for this version: version Compact Adapter — Towing Vehicle. The Buyukdemir reference is 6-0500.

It cross-refers to the original equipment numbers 8JA005952061, A002 540 1181.

The same part is made in other wiring diagram options: "B", Ultra-Compact Adapter — Volvo FH / Scania S4 / Daf / Iveco Cursor (6-0510), "A", Ultra-Compact Adapter — Mercedes Actros / Iveco Stralis (6-0511).

Manufactured by Büyükdemir Otomotiv in Istanbul, Türkiye, a producer of compressed-air brake and pneumatic components for trucks and trailers since 1957.
